Foot Control Valves

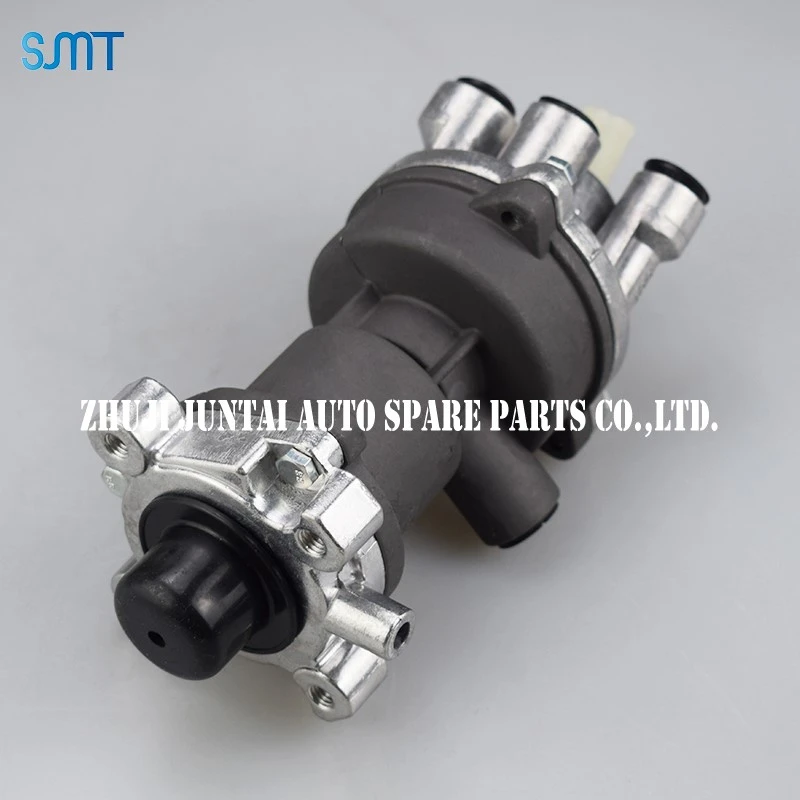

47160-3311 Foot Control Valves belongs to FOOT BRAKE VALVE.

Structural Composition

·Valve Assembly

  -Multi-layer composite design including intake chamber, balance chamber, and output chamber

·Pedal Linkage Mechanism

  -Converts pedal force into valve core action through lever principle

·Pressure Regulation Module

  -Equipped with dual-stage pressure adjustment springs and diaphragm assembly

·Emergency Braking Device

  -Integrated rapid-response structure for emergency braking

·Protection System

  -Built-in dust cover and waterproof breathable membrane

Core Functions

·Linear Pressure Output

  -Proportionally outputs braking pressure based on pedal travel

·Dual-Mode Control

  -Supports two modes: normal pressure braking and emergency braking

·Fail-Safe Protection

  -Maintains basic braking capability during system failures

Operational Characteristics

·Response Phase

  -Achieves synchronous response between pedal action and pressure buildup

·Maintenance Phase

  -Stabilizes and maintains output pressure values

·Release Phase

  -Quickly releases the braking state

Innovative Features

·Modular design for easy maintenance

·Lightweight structure reduces operating effort

·Compatible with intelligent brake system signal interfaces

47160-3311 Foot Control Valves belongs to Air Brake Valve.

Function Description

·Brake Activation

  -Supplies compressed air to actuate brakes on all wheels.

·Pressure Regulation

  -Delivers air volume proportional to brake pedal depression distance.

·Pressure Release

  -Exhausts air from service brakes through exhaust ports upon pedal release.

Structural Variants

·Overhead Mounting Style

  -Features downward-hanging foot pedal.

·Floor-Mounted Style

  -Utilizes foot treadle for operation.

Operational Principle

·Depressing Pedal: Controls air delivery to brake chambers

·Releasing Pedal: Vents air through exhaust passage

·Proportional Control: Enables precise braking force modulation

Typical Applications

·Commercial vehicle pneumatic brake systems

·Heavy-duty equipment braking circuits
