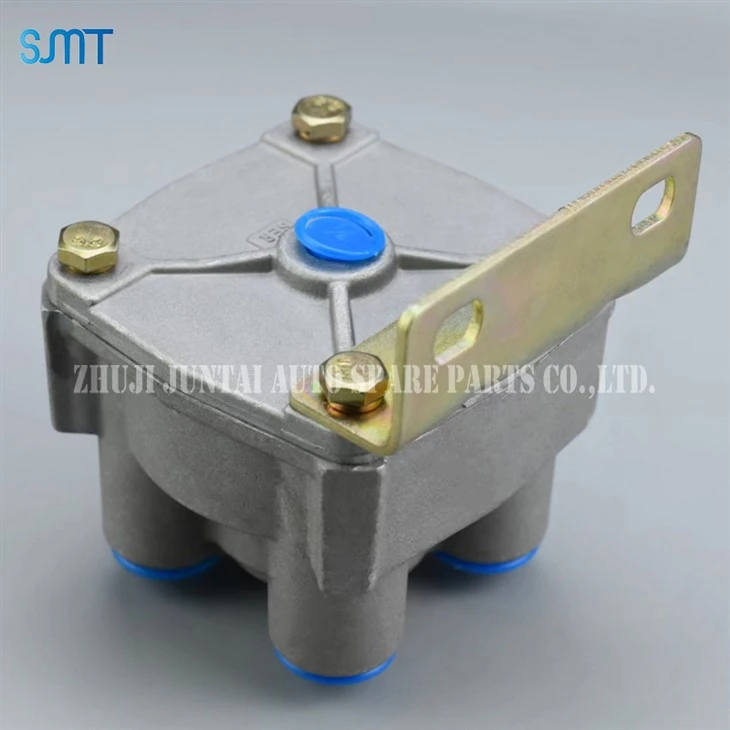

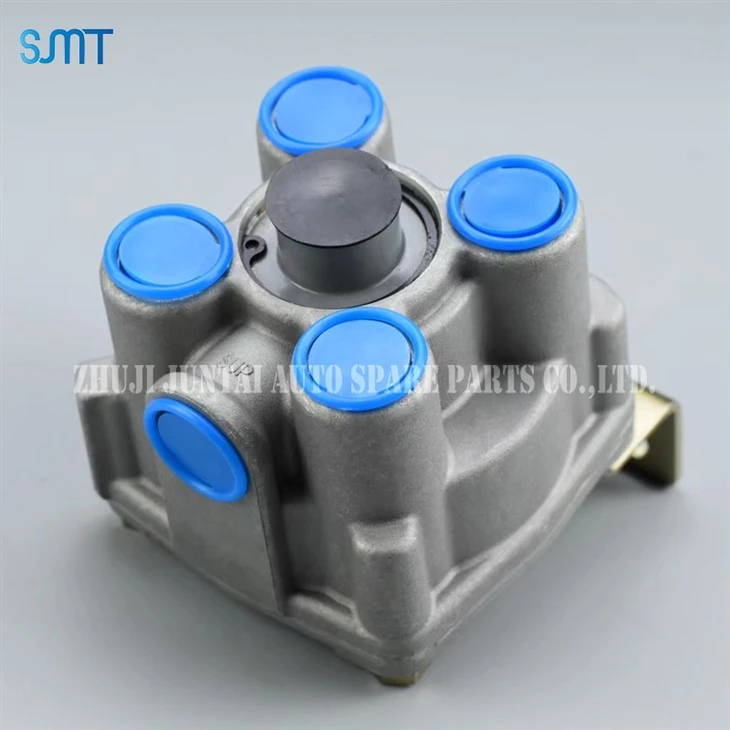

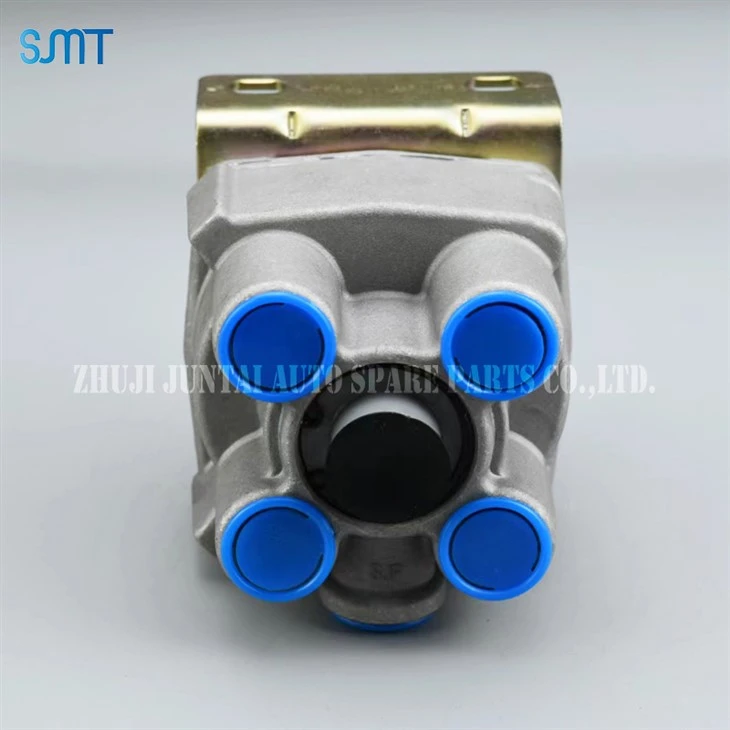

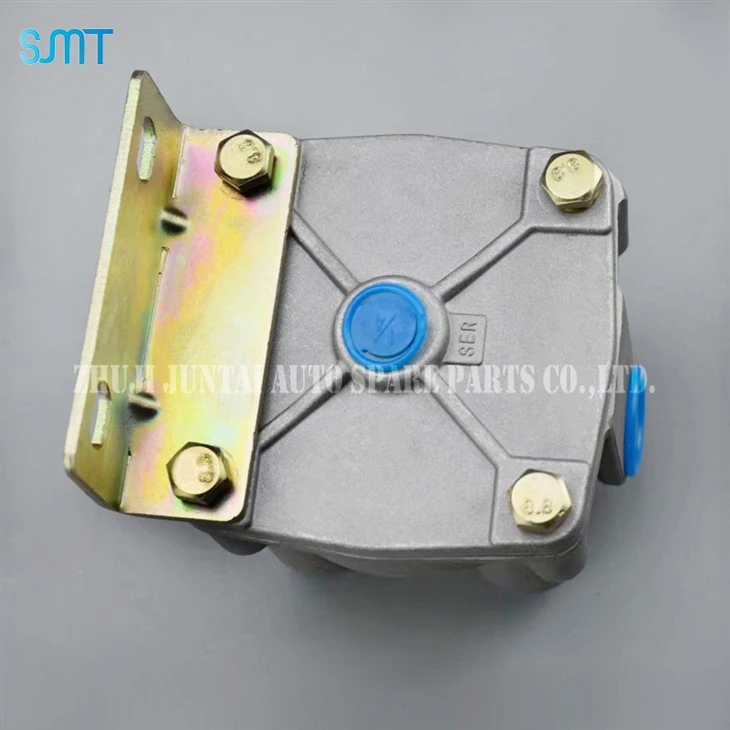

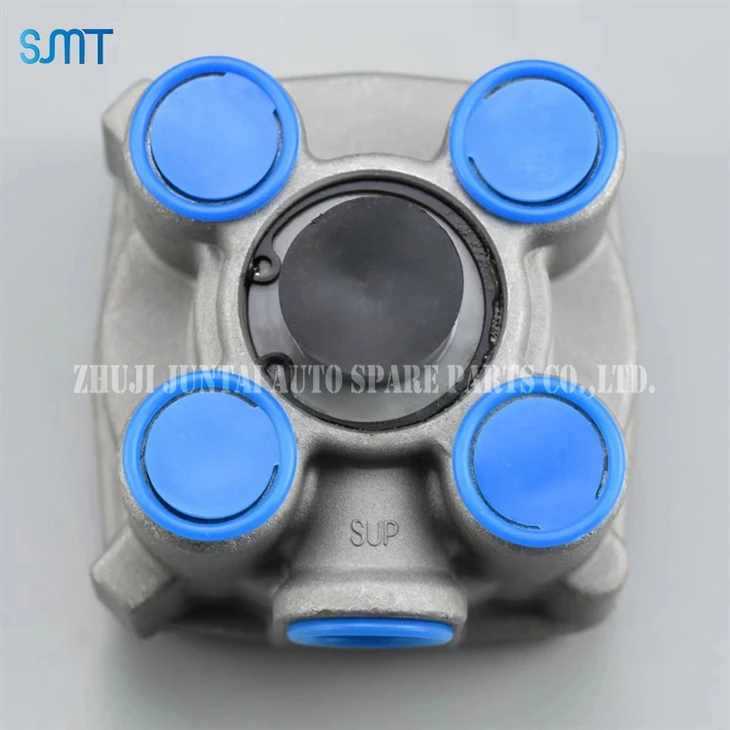

102626 Valve

102626 Valve belongs to RELAY VALVE.

The 102626 relay valve serves as the critical pressure management hub in commercial vehicle air brake circuits, combining rapid response with precise airflow control. This dual-function component integrates a sensitive control valve that detects subtle pressure changes from the foot valve with a high-capacity relay mechanism capable of delivering 25 CFM airflow to brake chambers.

Positioned near the rear axle service chambers, the valve maintains constant 7-8 bar standby pressure while monitoring control line signals as faint as 0.25 bar. When activated, its balanced piston design opens multiple 10mm air passages simultaneously, filling brake chambers up to 60% faster than direct line systems. The unit's progressive flow characteristics ensure smooth

application even during emergency stops, while integrated pressure-limiting valves prevent dangerous overpressurization that could damage diaphragms.

Engineered for North American severe-service applications, the 102626 features:

·Frost-resistant exhaust ports preventing ice accumulation

·Self-cleaning filter screens for contaminant rejection

·Corrosion-proof aluminum alloy housing

Fleet maintenance data shows this relay valve reduces brake lag by 0.3 seconds in tractor-trailer combinations - crucial for preventing jackknife situations. Its modular design allows for in-vehicle servicing without complete air system evacuation.

102626 Valve belongs to AIR BRAKE VALVE. The 102626 relay valve is a heavy-duty component for US truck air brake systems, featuring 1/2" NPT supply/delivery ports and a 1/4" NPT control port. With a precise 4.0 psi crack pressure, this valve ensures rapid air delivery while preventing system overload in demanding commercial applications.

Q: How do you control product quality?

A: 1) Each production batch will have a task list and a flow list.

2) Each batch of products will go through the first inspection, random inspection and final inspection, three processes to control the quality.

Q: What is the delivery time?

A: The delivery time depends on the order quantity and product type, generally ranging from 2 days to 4 weeks.

Q: How to purchase and transport this accessory?

A: You can place an order through our international sales channels and choose the appropriate shipping method.

Q: Can you offer OEM&ODM?

A: Yes, our factory provides OEM and ODM services, and can design and develop products according to customer needs.

Q: How long does it take to customize a product?

A: The production cycle of customized products is usually longer than that of standard products, depending on the design complexity and production schedule.
