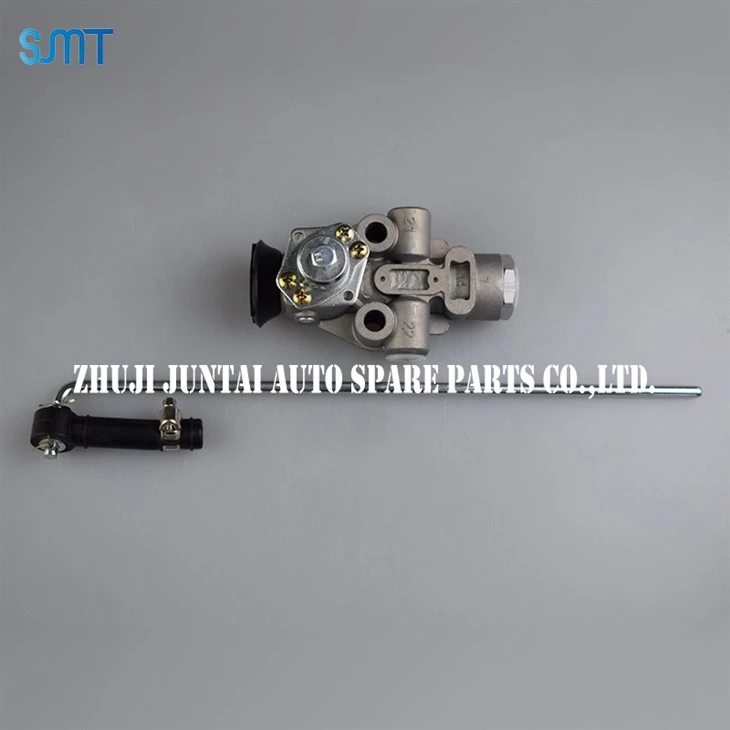

Height Control Valve For Trailers

Type	LEVELLING VALVE
Place of Origin	Zhejiang, China
Purpose	For replace/repair
OE NO.	4640023300 4640023307
Application	AIR SUSPENSION SYSTEM
Gross Weight	32 KGS
Net Weight	29 KGS
Packing Quantity	50 PCS/CTN
Package Dimensions	58 CM*27.5 CM*39 CM





4640023300 Height Control Valve For Trailers belongs to LEVELLING VALVE.



Structural Composition

·Valve Assembly

  -High-strength cast housing

  -Precision pneumatic control channels

  -Multi-layer sealing protection structure

·Adjustment Mechanism

  -Lever linkage device

  -Adjustable preload spring set

  -Wear-resistant articulated components

·Interface System

  -Quick-connect pneumatic ports

  -Bi-directional airflow control valve

  -Anti-misalignment installation design



Core Functions

·Dynamic Adjustment

  -Real-time height feedback regulation

  -Automatic inflation/deflation control

  -Steady-state height maintenance

·Intelligent Compensation

  -Load-adaptive adjustment

  -Multi-stage sensitivity settings

  -Dynamic balancing function

·Safety Protection

  -Mechanical overload protection

  -Pressure anomaly cutoff

  -Fail-safe mode



Performance Advantages

·Reliable all-mechanical structure

·Strong environmental adaptability

·Maintenance-free long service life

·Vibration-resistant design





4640023300 Height Control Valve For Trailers belongs to AIR SUSPENSION SYSTEM.



System Classification

·Component Type: Leveling Valve

·Application System: Air Suspension System



Mechanical Specifications

·Actuation Angle: 90°

·Mounting Interface: 2×Ø9 mm mounting holes



Pneumatic Port Specifications

·Port Thread 1: M12×1.5

·Port Thread 21: M12×1.5

·Port Thread 22: M12×1.5



Functional Characteristics

·Precise Height Control

  -Mechanical actuation with 90° operating angle

  -Direct linkage to suspension components

·Robust Construction

  -Standardized metric thread ports for reliable connections

  -Vibration-resistant mounting design

·System Integration

  -Triple pneumatic port configuration

  -Compatible with standard air suspension tubing



Installation Notes

·Verify proper lever arm alignment before operation

·Ensure correct port connections per system schematic

·Check for air leaks after installation





























Q: Is it possible to manufacture items based on our specifications?

A: Kindly share your detailed technical parameters with our engineering team for feasibility assessment.



Q: What is your standard production-to-delivery cycle?

A: Our standard fulfillment timeline ranges from 3-20 business days, contingent upon order specifications. For bulk orders or exceptional cases, we're flexible to discuss adjusted schedules through mutual consultation.



Q: Could you provide the size specifications of your manufacturing facility?

A: Our production premises span more than 3000 square meters.



Q: Could you outline your accepted payment arrangements?

A: We accommodate various secure transaction methods including Telegraphic Transfers, Letters of Credit, International Money Transfers, and Electronic Fund Transfers.



Q: Is sample availability possible for product evaluation?

A:

1) Stock availability: Samples can be dispatched immediately from existing inventory, with applicable sample and shipping fees.

2) Custom production: For out-of-stock items, we prioritize small trial batches for quality verification.

3) Order transition: Successful sample evaluation enables seamless progression to bulk procurement.
