Leveling Valve On Trailer

0500005001 Leveling Valve On Trailer belongs to LEVELLING VALVE.

Monitors Height:

·A mechanical linkage connects the valve to the vehicle frame (body) and the axle.

·Changes in vehicle load (loading/unloading) cause the body to sink or rise relative to the axle.

·This movement physically actuates the height valve's linkage.

Detects Deviation:

·The valve's internal mechanism senses the position change of the linkage.

·It determines if the current body height is above or below the pre-set target height.

Controls Air Supply (Inflates Air Springs):

·When the body is TOO LOW:

  -Valve opens the AIR INLET.

  -Compressed air flows FROM the reservoir tank THROUGH the valve.

  -Air enters the connected air spring (air bag).

  -The air spring inflates, RAISING the body back towards the target height.

Maintains Set Height:

·When the body reaches the TARGET HEIGHT:

  -The linkage returns to a neutral position.

  -Valve CLOSES BOTH the inlet and exhaust ports.

  -Air is trapped in the air spring, LOCKING the body at the correct height.

Prevents Over-Cycling (Delay Response - Common Feature):

·Filters out rapid, temporary height changes.

·Only responds to sustained height deviations indicating a true load change.

·Prevents unnecessary air system operation, improving comfort and component life.

In Simple Terms, the Height Valve is an Automatic Height Regulator:

·Constantly Monitors: Vehicle ride height via its linkage.

·Precisely Controls: Air flow to the air springs based on height error.

  -Too Low? Opens air inlet → Inflates spring → Raises body.

  -Too High? Opens air exhaust → Deflates spring → Lowers body.

  -Correct Height? Closes all ports → Holds height stable.

0500005001 Leveling Valve On Trailer belongs to AIR SUSPENSION SYSTEM.

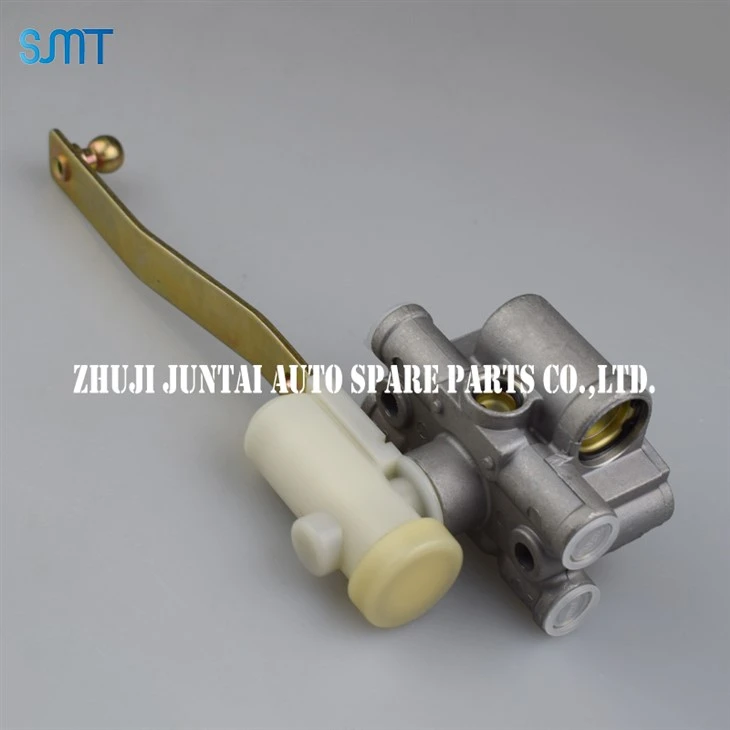

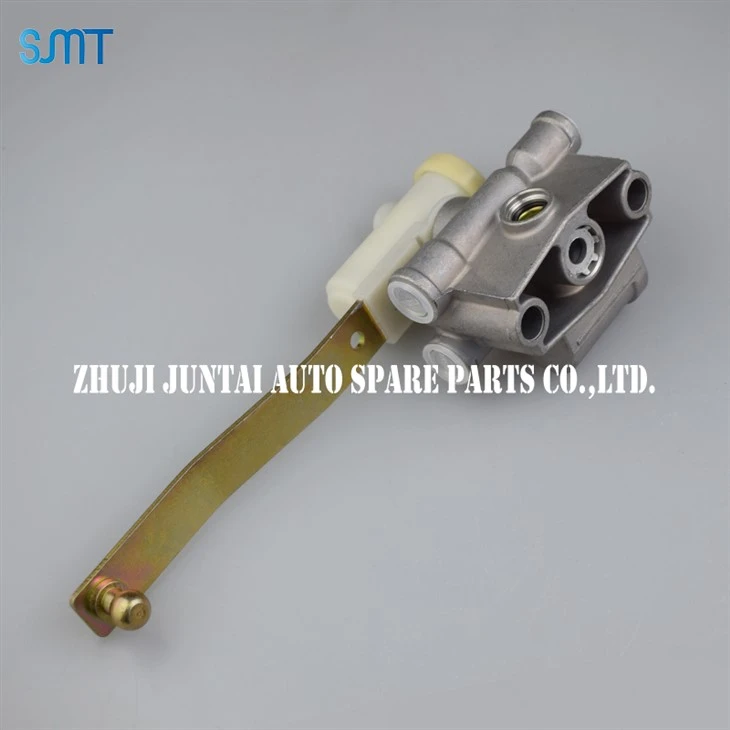

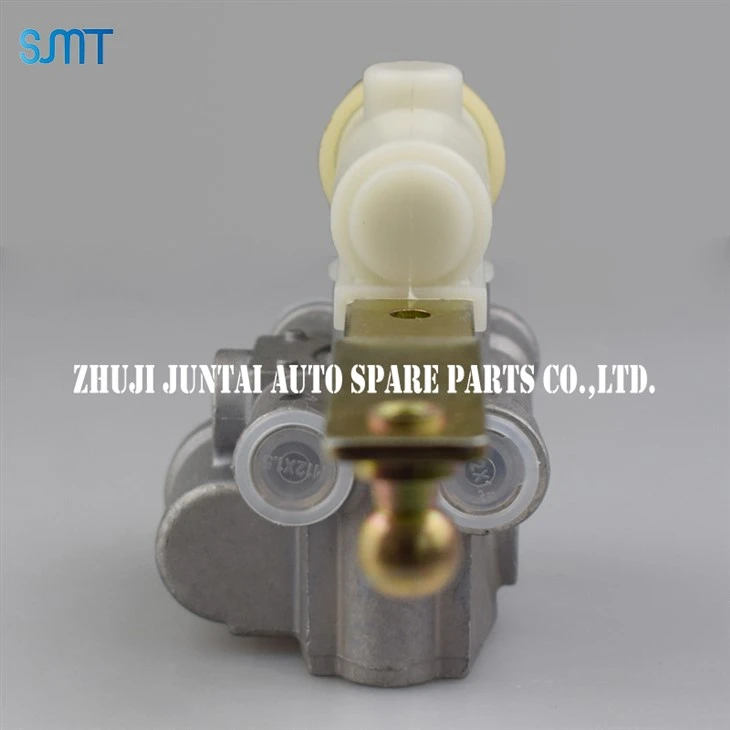

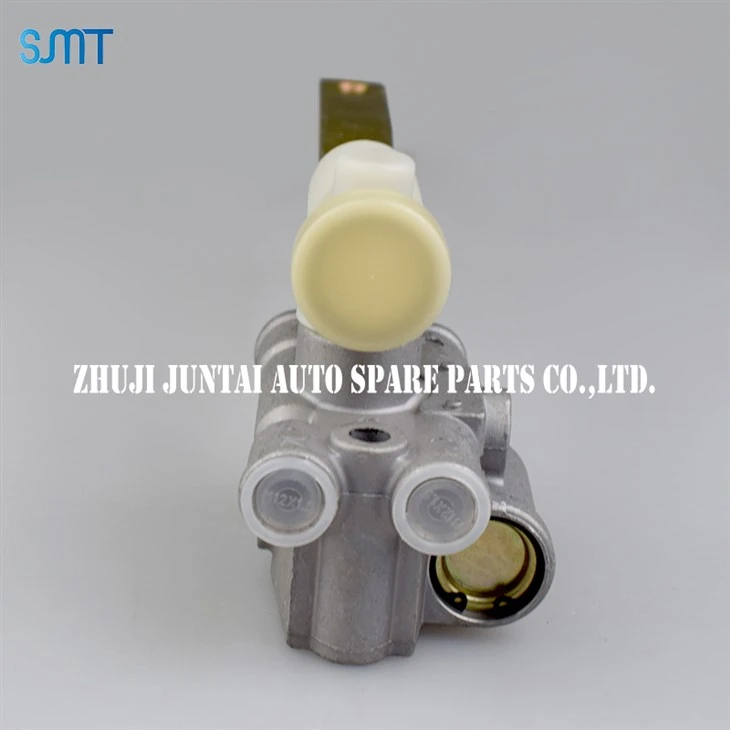

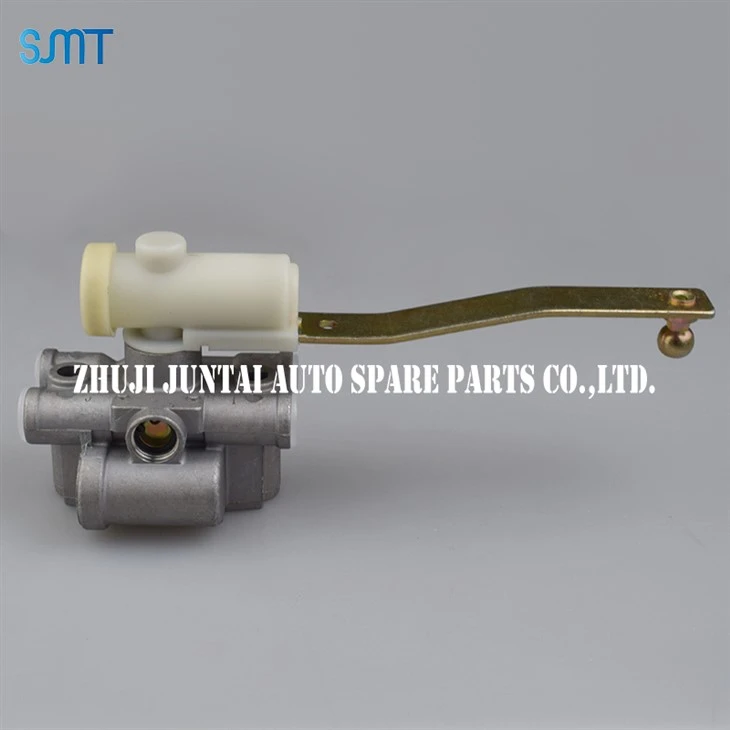

This height valve (Part No.: 0500005001) for air suspension systems features three threaded connections (Connection 1, Connection 2, and Connection 3), all with an M12x1.5 thread size. It is designed to regulate the air suspension height between the vehicle chassis and wheels, with the three ports allowing flexible hose routing for different installation configurations. Compatible with standard 12mm fine-threaded pneumatic lines.
